Combination ULS

The frame "Combinations ULS" contains a table with the list of input combinations of the bearing capacity limit state. Adding (editing) combinations and their parameters is performed in the "New combination of load cases" dialog window. Editing can be carried out with the help of "Modify" button or by clicking the row with the required combination in the list using the left mouse button.

The built-in generator of combinations of load cases can be used to create individual combinations.

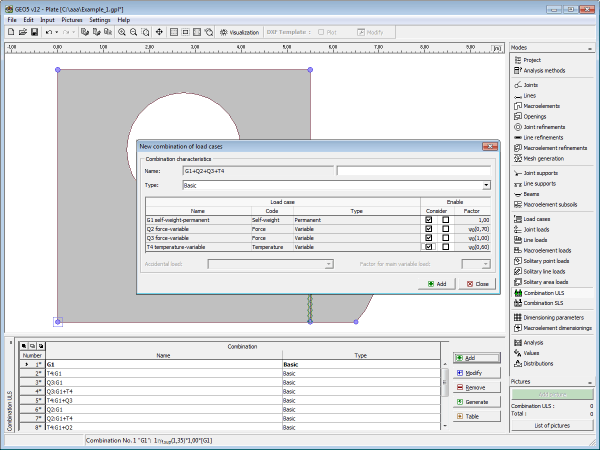

Frame "Combination ULS"
